Introduction

The respiratory system is one of the most essential organ systems in the human body. Its primary role is to bring oxygen into the body and remove carbon dioxide produced by cellular metabolism. Every cell requires oxygen to generate energy, while carbon dioxide must be continuously eliminated to maintain normal acid-base balance.

Although breathing appears simple, it involves a highly coordinated interaction between the nose, pharynx, larynx, trachea, bronchi, lungs, respiratory muscles, blood, and nervous system.

Understanding respiratory system anatomy and physiology is important for medical, dental, nursing, physiotherapy, and allied health students because respiratory function is closely connected with cardiovascular physiology, metabolism, acid-base balance, and neurological control.

In this comprehensive guide, we will discuss the major respiratory organs, their functions, the mechanism of breathing, pulmonary gas exchange, lung volumes, and regulation of respiration.

What Is the Respiratory System?

The respiratory system is a group of organs and tissues responsible for respiration. It facilitates the movement of air between the atmosphere and the lungs and allows oxygen and carbon dioxide to be exchanged between air and blood.

The respiratory system performs several important functions:

• Oxygen uptake
• Carbon dioxide elimination
• Regulation of blood pH
• Voice production
• Smell
• Air filtration
• Warming and humidification of inspired air
• Protection against inhaled particles and microorganisms

The respiratory system works closely with the cardiovascular system. The lungs oxygenate blood, while the circulatory system transports oxygen to tissues and returns carbon dioxide to the lungs.

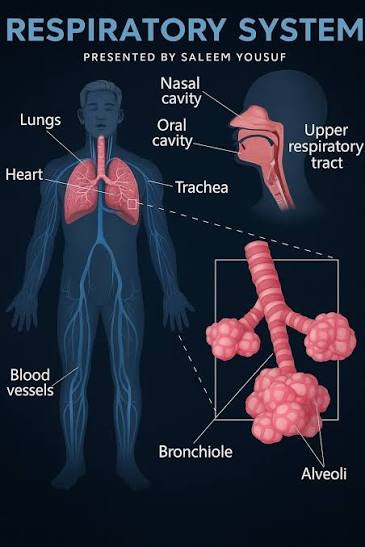

Major Organs of the Respiratory System

The respiratory system can broadly be divided into:

Upper respiratory tract

• Nose
• Nasal cavity
• Paranasal sinuses
• Pharynx

Lower respiratory tract

• Larynx
• Trachea
• Bronchi
• Bronchioles
• Lungs
• Alveoli

The respiratory system also includes important supporting structures such as the diaphragm, intercostal muscles, pleura, and other respiratory muscles.

1. Nose and Nasal Cavity

The nose is the main entrance for inspired air.

The nasal cavity performs several important functions before air reaches the lungs.

Functions of the nasal cavity

1. Filtration:

Nasal hairs and mucus trap dust, pollen, and other particles.

2. Warming:

A rich blood supply in the nasal mucosa helps warm incoming air.

3. Humidification:

The nasal mucosa adds moisture to inspired air.

4. Olfaction:

The upper region of the nasal cavity contains olfactory receptors involved in the sense of smell.

The nasal cavity therefore acts as an important protective and conditioning system for the lower respiratory tract.

2. Paranasal Sinuses

The paranasal sinuses are air-filled spaces within certain bones of the skull.

They include:

• Frontal sinuses
• Maxillary sinuses
• Ethmoidal sinuses
• Sphenoidal sinuses

Functions of paranasal sinuses

They may contribute to:

• Reducing the weight of the skull
• Resonance of the voice
• Production and drainage of mucus
• Conditioning inspired air

Inflammation of the paranasal sinuses is known as sinusitis.

3. Pharynx

The pharynx is a muscular passage shared by the respiratory and digestive systems.

It is divided into:

1. Nasopharynx
2. Oropharynx
3. Laryngopharynx

Air passes through the pharynx toward the larynx, while food travels toward the esophagus.

4. Larynx

The larynx, commonly called the voice box, connects the pharynx to the trachea.

It plays important roles in:

• Air passage
• Voice production
• Protection of the lower airway

The larynx contains the vocal folds, which vibrate as air passes through them to produce sound.

Epiglottis

The epiglottis helps prevent food and liquid from entering the airway during swallowing.

5. Trachea

The trachea, or windpipe, is a tubular structure connecting the larynx with the main bronchi.

It is supported by C-shaped cartilage rings, which help prevent collapse of the airway.

The inner surface contains a respiratory epithelium with mucus-producing cells and cilia.

Mucociliary clearance

Particles trapped in mucus can be transported upward toward the pharynx by coordinated ciliary movement. This mechanism is an important defense against inhaled pollutants and microorganisms.

6. Bronchi

The trachea divides into:

• Right main bronchus
• Left main bronchus

These bronchi enter the lungs and continue dividing into smaller branches.

The branching pathway can be summarized as:

Trachea → Main bronchi → Lobar bronchi → Segmental bronchi → Smaller bronchi → Bronchioles → Terminal bronchioles → Respiratory bronchioles → Alveolar ducts → Alveoli

This extensive branching system distributes air throughout the lungs.

7. Bronchioles

Bronchioles are smaller airways that do not contain the same cartilage support found in larger bronchi.

Their walls contain smooth muscle, allowing changes in airway diameter.

Constriction of bronchiolar smooth muscle can increase airway resistance, while relaxation can improve airflow.

This is particularly important in conditions such as asthma, where airway narrowing can significantly interfere with ventilation.

8. Lungs

The lungs are the major organs of respiration.

Humans normally have two lungs located within the thoracic cavity.

Right lung

The right lung has three lobes:

• Superior lobe
• Middle lobe
• Inferior lobe

Left lung

The left lung has two lobes:

• Superior lobe
• Inferior lobe

The left lung is slightly smaller because the heart occupies space on the left side of the thorax.

9. Pleura

Each lung is surrounded by a double-layered membrane called the pleura.

It consists of:

• Visceral pleura
• Parietal pleura

A thin layer of pleural fluid lies between these layers.

Functions of pleura

The pleural system:

• Reduces friction during breathing
• Helps the lungs remain mechanically coupled to the chest wall
• Facilitates smooth lung movement during inspiration and expiration

10. Alveoli: The Main Site of Gas Exchange

The alveoli are microscopic air sacs located at the ends of the respiratory tree.

They are the primary sites of pulmonary gas exchange.

Each alveolus is surrounded by a dense network of pulmonary capillaries.

The alveolar wall is extremely thin, allowing oxygen and carbon dioxide to diffuse efficiently between alveolar air and blood.

What Is the Respiratory Membrane?

The respiratory membrane, also called the alveolar-capillary membrane, separates alveolar air from pulmonary capillary blood.

Its thin structure allows rapid diffusion of gases.

The efficiency of gas exchange depends on several factors, including:

• Thickness of the membrane
• Surface area available for diffusion
• Difference in partial pressures
• Properties of the gases
• Ventilation and blood flow

Diseases that increase the thickness of the respiratory membrane or reduce available surface area can impair oxygen transfer.

Functions of the Respiratory System

The respiratory system performs much more than simply bringing oxygen into the lungs.

1. Oxygenation

The lungs allow oxygen from inspired air to enter the bloodstream.

Oxygen is then transported primarily by hemoglobin within red blood cells.

2. Carbon Dioxide Removal

Cells produce carbon dioxide as a metabolic waste product.

Carbon dioxide is transported through the blood to the lungs and then exhaled.

3. Regulation of Blood pH

The respiratory system contributes to acid-base regulation by controlling the amount of carbon dioxide in the blood.

Carbon dioxide participates in the reaction:

CO₂ + H₂O ⇌ H₂CO₃ ⇌ H⁺ + HCO₃⁻

Therefore, changes in ventilation can rapidly influence blood pH.

4. Voice Production

Air passing through the larynx causes vibration of the vocal folds.

This process produces sound, which is subsequently modified by structures of the pharynx, mouth, and nasal cavity.

5. Olfaction

The respiratory system allows odor molecules to reach olfactory receptors in the nasal cavity.

6. Air Conditioning

Before reaching the alveoli, inspired air is:

• Filtered
• Warmed
• Humidified

This protects delicate lower respiratory structures.

7. Protection

The respiratory tract has several defense mechanisms, including:

• Nasal hairs
• Mucus
• Cilia
• Cough reflex
• Sneezing
• Immune cells
• Airway reflexes

These mechanisms help remove potentially harmful substances.

How Does Breathing Work?

Breathing, or pulmonary ventilation, is the movement of air into and out of the lungs.

It consists of two basic phases:

Inspiration

Air moves into the lungs.

Expiration

Air moves out of the lungs.

Breathing depends on pressure differences between the atmosphere and the alveoli.

Mechanism of Inspiration

During normal inspiration, the diaphragm contracts and moves downward.

At the same time, the external intercostal muscles assist in expanding the thoracic cavity.

As thoracic volume increases, intrapulmonary pressure falls below atmospheric pressure.

Air therefore flows into the lungs.

Simple sequence

Diaphragm contracts → Thoracic volume increases → Lung volume increases → Alveolar pressure decreases → Air enters lungs

Mechanism of Expiration

Normal expiration is usually a passive process.

During quiet expiration:

• Diaphragm relaxes
• Thoracic volume decreases
• Lung elastic recoil occurs
• Alveolar pressure increases

Air then moves from the lungs into the atmosphere.

Sequence

Diaphragm relaxes → Thoracic volume decreases → Lung volume decreases → Alveolar pressure increases → Air leaves lungs

Forced Inspiration and Expiration

During increased respiratory demand, additional muscles may be recruited.

Accessory muscles of inspiration

These may include muscles such as:

• Sternocleidomastoid
• Scalene muscles
• Other accessory muscles of the upper thorax

Forced expiration

Forced expiration actively uses expiratory muscles, particularly:

• Internal intercostal muscles
• Abdominal muscles

Forced breathing becomes important during exercise and respiratory distress.

Role of the Diaphragm in Respiration

The diaphragm is the principal muscle of quiet inspiration.

It separates the thoracic cavity from the abdominal cavity.

When the diaphragm contracts, it moves downward, increasing the vertical dimension of the thoracic cavity.

When it relaxes, it returns toward its resting position.

Exam point

Diaphragm = chief muscle of inspiration.

Pressure Changes During Breathing

Breathing occurs because of pressure differences.

Three important pressures are:

Atmospheric pressure

Pressure exerted by the surrounding atmosphere.

Intrapulmonary pressure

Pressure within the alveoli.

Intrapleural pressure

Pressure within the pleural cavity.

During inspiration, intrapulmonary pressure falls below atmospheric pressure, causing air to enter the lungs.

During expiration, intrapulmonary pressure rises above atmospheric pressure, causing air to leave.

Pulmonary Ventilation

Pulmonary ventilation refers to the movement of air between the atmosphere and alveoli.

It depends on:

• Respiratory rate
• Tidal volume
• Airway resistance
• Lung compliance
• Respiratory muscle activity

Tidal Volume

Tidal volume (TV) is the amount of air inspired or expired during a normal quiet breath.

In a healthy adult, it is approximately 500 mL at rest, although the exact value varies with body size and other factors.

Important Lung Volumes and Capacities

Respiratory physiology includes several important lung volumes.

Tidal Volume (TV)

Air moved during a normal breath.

Inspiratory Reserve Volume (IRV)

Additional air that can be inhaled after a normal inspiration.

Expiratory Reserve Volume (ERV)

Additional air that can be exhaled after a normal expiration.

Residual Volume (RV)

Air remaining in the lungs after maximal expiration.

Because residual volume remains in the lungs, the lungs do not completely empty during normal breathing.

Important Lung Capacities

Lung capacities combine two or more lung volumes.

Inspiratory Capacity

IC = TV + IRV

Functional Residual Capacity

FRC = ERV + RV

Vital Capacity

VC = IRV + TV + ERV

Total Lung Capacity

TLC = IRV + TV + ERV + RV

These measurements are clinically useful for evaluating pulmonary function.

What Is Dead Space?

Not all inhaled air participates in gas exchange.

Anatomical dead space

Air present in conducting airways such as the:

• Nose
• Pharynx
• Larynx
• Trachea
• Bronchi
• Bronchioles

This air does not directly participate in gas exchange.

Physiological dead space

Physiological dead space includes anatomical dead space plus alveolar regions that receive ventilation but have inadequate or absent effective perfusion.

Gas Exchange in the Lungs

Gas exchange occurs primarily by diffusion.

Oxygen moves:

Alveoli → Pulmonary capillary blood

Carbon dioxide moves:

Pulmonary capillary blood → Alveoli

This movement occurs because of differences in the partial pressures of gases.

Oxygen Transport

After oxygen enters pulmonary capillary blood, most of it binds to hemoglobin.

A smaller amount remains dissolved in plasma.

Hemoglobin allows blood to carry much more oxygen than would be possible if oxygen were transported only in dissolved form.

Carbon Dioxide Transport

Carbon dioxide is transported in the blood in three major forms:

1. Dissolved in plasma
2. Bound to proteins, including hemoglobin
3. As bicarbonate ions

The majority is transported in the form of bicarbonate.

This is closely related to the body's acid-base balance.

Ventilation-Perfusion Relationship

Effective gas exchange requires appropriate matching between:

• Ventilation (V): airflow reaching alveoli
• Perfusion (Q): blood flow through pulmonary capillaries

This relationship is known as the ventilation-perfusion ratio (V/Q).

An imbalance between ventilation and perfusion can reduce the efficiency of oxygenation.

Examples

Low V/Q:

Blood flow is relatively high compared with ventilation.

High V/Q:

Ventilation is relatively high compared with blood flow.

A complete lack of ventilation despite continued perfusion is called a shunt-like situation, while ventilation without effective perfusion contributes to physiological dead space.

Regulation of Respiration

Breathing is controlled primarily by respiratory centers in the brainstem.

Important areas include structures within the:

• Medulla
• Pons

These centers coordinate the rhythm and depth of breathing.

Chemoreceptors and Respiratory Control

The body continuously monitors changes in blood gases and acid-base status.

Central chemoreceptors

Central chemoreceptors are particularly sensitive to changes associated with carbon dioxide and hydrogen ion concentration in the central nervous system.

Peripheral chemoreceptors

Peripheral chemoreceptors are located mainly in:

• Carotid bodies
• Aortic bodies

They respond to changes in:

• Arterial oxygen
• Carbon dioxide
• Hydrogen ion concentration

These receptors help modify ventilation according to the body's needs.

What Happens During Exercise?

During exercise, the body's metabolic demand increases.

Working muscles consume more oxygen and produce more carbon dioxide.

To meet these demands:

• Respiratory rate increases
• Tidal volume increases
• Pulmonary ventilation increases
• Oxygen uptake increases
• Carbon dioxide elimination increases

The cardiovascular and respiratory systems therefore work together to maintain adequate oxygen delivery and carbon dioxide removal.

Respiratory System and Acid-Base Balance

The respiratory system is an important component of acid-base homeostasis.

When carbon dioxide increases, hydrogen ion concentration can also increase, tending to lower blood pH.

Increasing ventilation removes more carbon dioxide.

Conversely, reduced ventilation can cause carbon dioxide retention.

This is why respiratory disorders can produce significant disturbances in acid-base balance.

Common Respiratory Disorders

Disorders of the respiratory system can affect airways, lung tissue, pulmonary circulation, respiratory muscles, or the mechanisms controlling breathing.

Common conditions include:

Asthma

A chronic airway disorder characterized by variable airflow limitation and airway hyperresponsiveness.

Chronic Obstructive Pulmonary Disease

A group of chronic lung diseases characterized by persistent airflow limitation.

Pneumonia

An infection causing inflammation of lung tissue, often affecting the alveoli.

Tuberculosis

An infectious disease caused by Mycobacterium tuberculosis, primarily affecting the lungs but potentially involving other organs.

Pulmonary Edema

Accumulation of fluid in the lungs that can interfere with gas exchange.

Pulmonary Embolism

Obstruction of pulmonary blood flow, commonly caused by a blood clot.

Pneumothorax

Air enters the pleural space and can interfere with normal lung expansion.

Respiratory Failure

A serious condition in which the respiratory system cannot adequately maintain oxygenation and/or carbon dioxide removal.

Clinical Importance of Respiratory System Physiology

Understanding respiratory physiology is essential for interpreting several clinical findings.

For example, abnormalities in:

• Respiratory rate
• Oxygen saturation
• Breath sounds
• Lung volumes
• Blood gases
• Ventilation
• Perfusion

can provide important information about respiratory function.

Pulmonary function tests

Tests such as spirometry can assess airflow and help identify patterns suggestive of obstructive or restrictive lung disease.

Respiratory System: Anatomy vs Physiology

Anatomy focuses on:

• Structure of the nose
• Pharynx
• Larynx
• Trachea
• Bronchi
• Lungs
• Alveoli
• Pleura
• Respiratory muscles

Physiology focuses on:

• Ventilation
• Gas exchange
• Oxygen transport
• Carbon dioxide transport
• Lung volumes
• Ventilation-perfusion relationships
• Regulation of breathing
• Acid-base balance

Both are closely interconnected.

Anatomy explains the structures; physiology explains how those structures work.

Respiratory System Flowchart

The overall pathway of air can be remembered as:

Atmosphere → Nose → Nasal cavity → Pharynx → Larynx → Trachea → Main bronchi → Smaller bronchi → Bronchioles → Respiratory bronchioles → Alveolar ducts → Alveoli

At the alveoli:

O₂ → Blood

CO₂ → Alveoli → Exhaled air

Respiratory System: High-Yield Exam Points

For medical and allied health examinations, remember these important points:

• Diaphragm is the chief muscle of inspiration.
• The right lung has three lobes, while the left lung has two.
• Alveoli are the primary sites of pulmonary gas exchange.
• Oxygen diffuses from alveoli into pulmonary capillary blood.
• Carbon dioxide diffuses from blood into alveoli.
• Most oxygen is transported bound to hemoglobin.
• Most carbon dioxide is transported as bicarbonate.
• Normal quiet expiration is primarily passive.
• Residual volume is the air remaining in the lungs after maximal expiration.
• Vital capacity = IRV + TV + ERV.
• Total lung capacity = VC + RV.
• Ventilation refers to air movement, while perfusion refers to blood flow.
• The medulla and pons play major roles in respiratory control.
• Carotid and aortic bodies are important peripheral chemoreceptors.
• Carbon dioxide has a major influence on respiratory regulation and acid-base balance.

Frequently Asked Questions About the Respiratory System

What is the main function of the respiratory system?

The primary function is to facilitate oxygen uptake and carbon dioxide removal. It also contributes to acid-base regulation, voice production, smell, and airway protection.

What are the main organs of the respiratory system?

The major structures include the nose, nasal cavity, pharynx, larynx, trachea, bronchi, bronchioles, lungs, and alveoli.

Where does gas exchange occur?

Gas exchange occurs primarily across the alveolar-capillary membrane of the alveoli.

Which muscle is mainly responsible for inspiration?

The diaphragm is the principal muscle of quiet inspiration.

Why is the left lung smaller than the right lung?

The left lung has less space because the heart occupies part of the left side of the thoracic cavity.

What is tidal volume?

Tidal volume is the amount of air inhaled or exhaled during a normal quiet breath.

What happens during inspiration?

The diaphragm contracts, thoracic volume increases, alveolar pressure decreases, and air flows into the lungs.

What happens during expiration?

During quiet expiration, the diaphragm relaxes, lung volume decreases due to elastic recoil, alveolar pressure rises, and air flows out.

Conclusion

The respiratory system is a highly coordinated system responsible for ventilation, gas exchange, oxygen delivery, carbon dioxide elimination, and maintenance of acid-base balance. Its anatomy ranges from the upper airway to microscopic alveoli, while its physiology involves pressure changes, respiratory muscle activity, diffusion, blood gas transport, and neural regulation.

Understanding the relationship between respiratory anatomy and physiology makes it easier to understand common respiratory disorders and interpret clinical findings.

From the first movement of air through the nose to the exchange of oxygen and carbon dioxide across the alveoli, every component of the respiratory system contributes to maintaining the body's continuous demand for oxygen and removal of metabolic waste.
